Overview

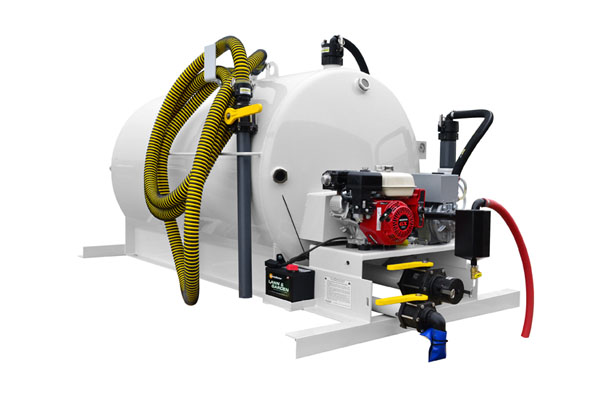

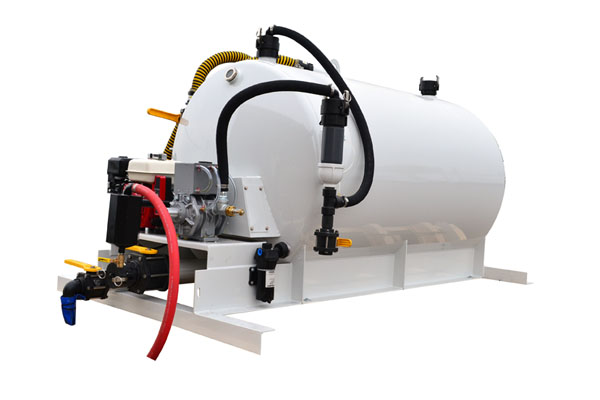

The MD400 is ideal for small routes, quick services, quality control and locations where a small truck is the only way to service restrooms. Designed as a self-contained tank for long box pickup trucks, the 270-gallon waste/130-gallon fresh tank uses a "Bolt-in / system that allows quick removal. A Honda 5.5 HP - Conde 6 vacuum system is the standard pump with 25’ service hose; Flojet wash-down system. Fits in pickups with 4000 lb. payload capacity.

Add additional options and upgrade the module for your specific needs.

Features

• 3” waste outlet valve, rear service
• 2” fresh outlet valve, rear service
• Waste & Fresh sight glasses
• ½” metal hose standoff to protect paint with rack for service hose
• Unique baffle design
• Vacuum gauge mounted on vacuum system mounting platform
• Conde 6/Honda 5.5 HP Gas/Belt-driven, Vacuum only

Wash down system

Flojet or whale diaphragm 45 PSI, 4 GPM pump with 25’ garden hose and sprayer. Powered by vacuum system battery.

Options

• Pressure wash systems
• Longer vacuum hose lengths
• Coated fresh compartment with manway
• Dump hose in 5’ or 10’ lengths
• Conde 6 SS with 4-way valve

Specifications

Dimensions

Length (module)	Waste/Fresh Split	Width (excluding front and rear mount)	Weight (empty)
70”	270/130	48”	1,175 lbs.
