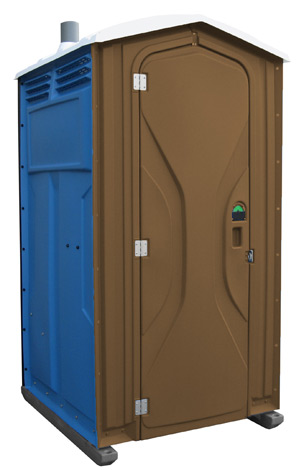

Tufway
Overview

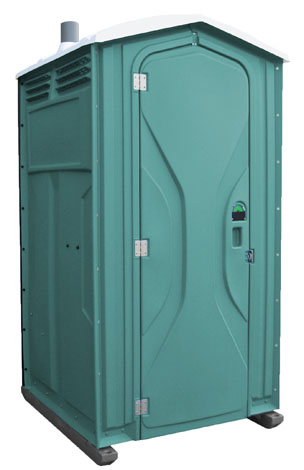

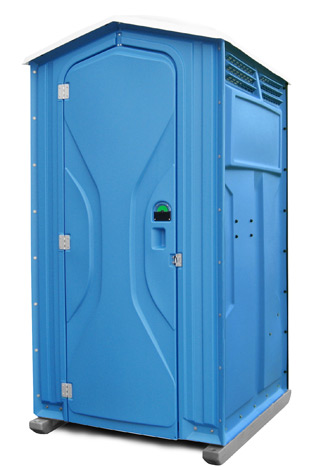

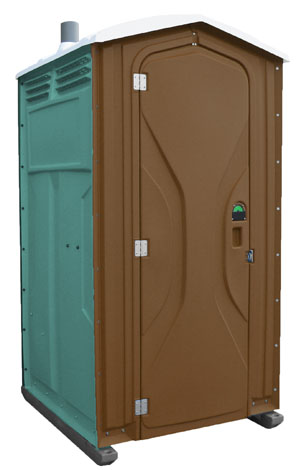

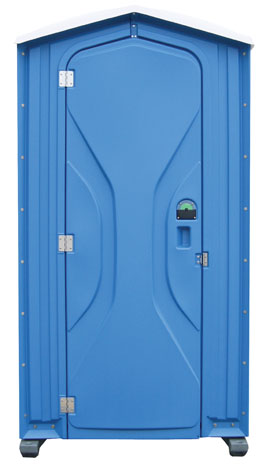

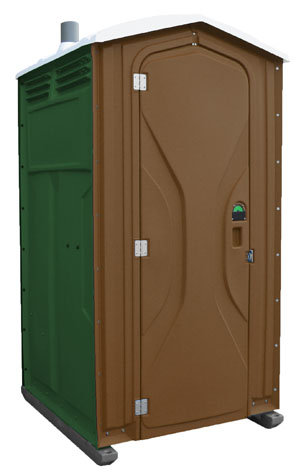

A unique combination of durability and comfort is why operators and end users have made Tufway the most used restroom in the world.

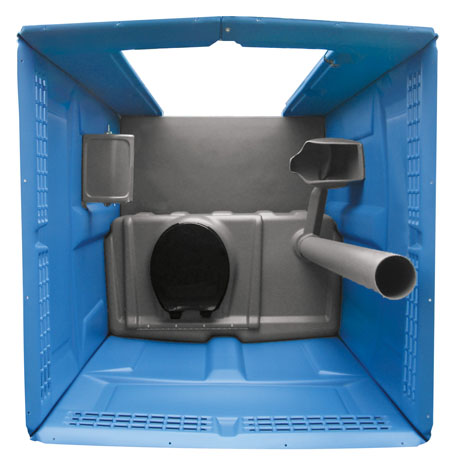

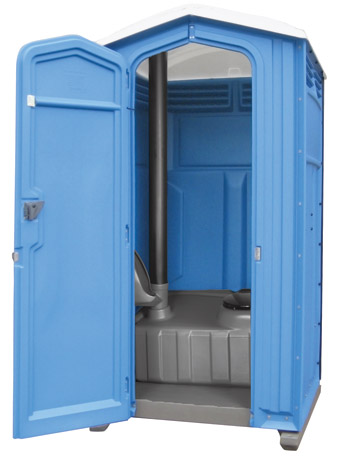

By design, the Tufway interior is built for user comfort. It has a spacious, well ventilated interior to reduce odors due to simple, yet important features. A combination of floor and molded-in wall vents facilitate continuous air flow. The urinal drains down the vent pipe, which prevents unwanted tank odors from venting back into the cabana. The seat is positioned at the furthest point from the urinal, away from odor and user’s direct sight. There is also a convenient door hook to hang a purse or jacket. Together, these features produce a more comfortable, pleasant experience for the end user.
Operationally, the Tufway is a low-maintenance, easy-to-service restroom with a long history of durability. Using fewer parts made from high density polyethylene, the Tufway can withstand impact and abusive handling without cracking or breaking. The features which make the Tufway easy to clean and service are the front sloping tank top, slightly domed floor and smooth, deep sumped tank. Adding slope to the tank and floor surface forces liquids to drain, not puddle, and the sumped tank improves deodorizer coverage and assures quick, complete waste removal.
- Large 265L sumped tank
- Molded-in vent screens
- Unbreakable corner construction
- Unbreakable stand over urinal
- Convenient door hook
- Multiple flushing options
- 10 Year Limited Warranty
Flush & Handwash
-
Sinks
Compact in-unit handwash with water conserving "fan spray" nozzle is designed to fit most units. The forearm version has an oversized basin that lets the user wash all the way past the elbow and still leaves plenty of interior space.
Learn More -
Western Hand / Foot Flush
The Western re-circulating flushing system is a popular option for customers since it can be installed quickly to easily upgrade any of Satellite’s standard, wheelchair accessible and many other portable toilets into a flushing unit.
Learn More -
Flapper Hand / Foot Flush
This unique fresh flush system features a plastic flapper bowl that hides waste from view and seals tight to reduce odor. Retrofit any of Satellite’s standard units and some specialty units into a flushing unit with a versatile flapper bowl.
Learn More -

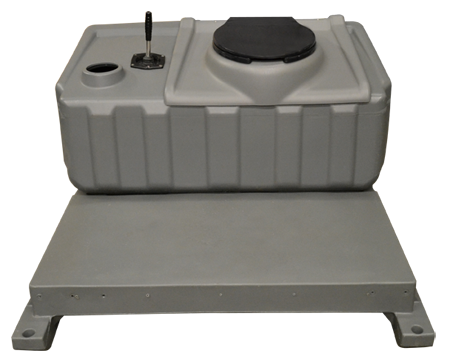

Flip Top Hand / Foot Flush
Effective flushing action and low maintenance characterize the new flip top flushing system. The re-circulating foot or hand flush system has superior design features that ensure its longevity. This convenient all-in-one flushing tank has the power to clean itself after each use.
Learn More
Additional Options
Specifications
Height: | 2235mm |
Width: | 1118mm |
Depth: | 1219mm |
Weight: | 105kg |
Standard tank vol: | 265L |
Swish tank volume: | 227L |
Floor space: | 1041mm x 533mm |
Seat height: | 457mm |
Door opening: | 1981mm x 660mm |
Download / Media
- Picture Downloads: Download (zip)
- Parts PDF: Tufway Parts Catalog (pdf)
- Product Brochure:
Tufway Brochure (pdf)
Tufway Flush Brochure (pdf) - Assembly Instructions: Tufway Unit Assembly (pdf)
- Warranty: Tufway Warranty (pdf)
Contact us at (+86) 757 8227-6600 or (+86) 757 8227-6611
