Liberty
Overview

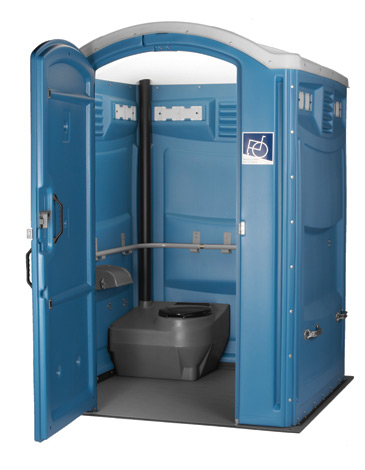

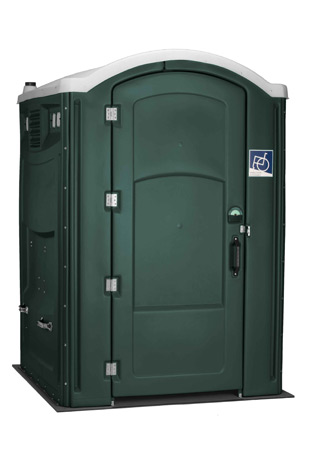

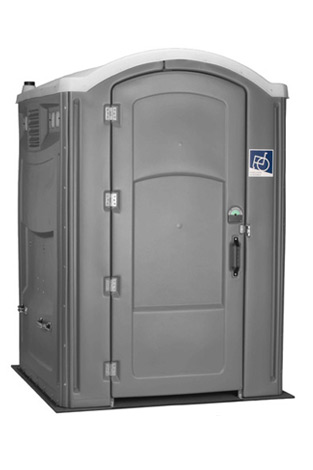

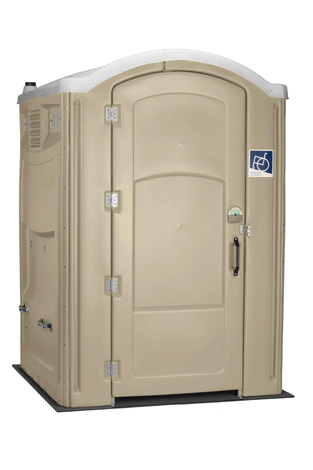

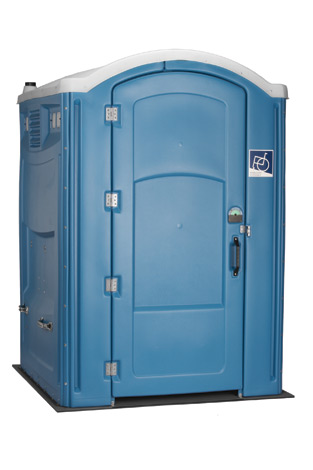

The Liberty is a spacious, wheelchair accessible restroom that can also be promoted as a family-sized restroom. It has a patented flat-floor system for easy wheelchair access and maneuverability. The handrails and paper holder, together with the rotary latch, are designed and manufactured for simple end-user operation.
Operators have the distinct advantage of owning a restroom made from high molecular weight polyethylene that is durable and vandal resistance. The entire door frame, which is made of a vacuum formed twin sheet, is able to withstand hard hits and endless pounding without bending or buckling like metal frames. The patented flat floor system, combined with the strength of the side walls and capped roof, forms a sleek, modern restroom that retains its shape over the life of the product
- Strong, twin-sheet, non-metal door frame

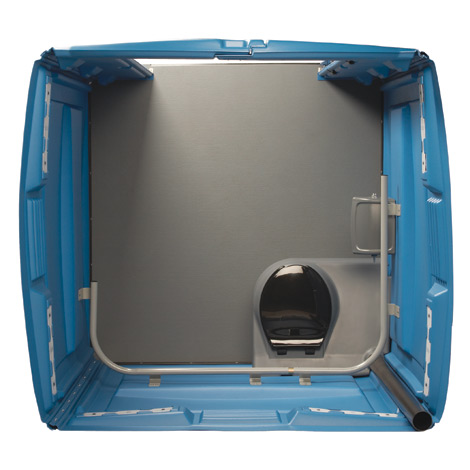

- Patented flat floor system
- Roof tie-down grooves in both directions
- Four corner stake down holes
- Large, easy-to-grasp handles
- Wheelchair accessible decal
- 4 Year Limited Warranty
Flush & Handwash
-
Western Hand Flush
The Western re-circulating flushing system is a popular option for customers since it can be installed quickly to easily upgrade any of Satellite’s standard, wheelchair accessible and many other portable toilets into a flushing unit.
Learn More
Additional Options
Specifications
Width (exterior): | 1575mm |
Depth (exterior): | 1575mm |
Height (exterior): | 2311mm |
Door width: | 132) |
Door height: | 2054mm) |
Seat height: | 483mm |
Weight: | 107Kg |
Tank vol: | 132L |

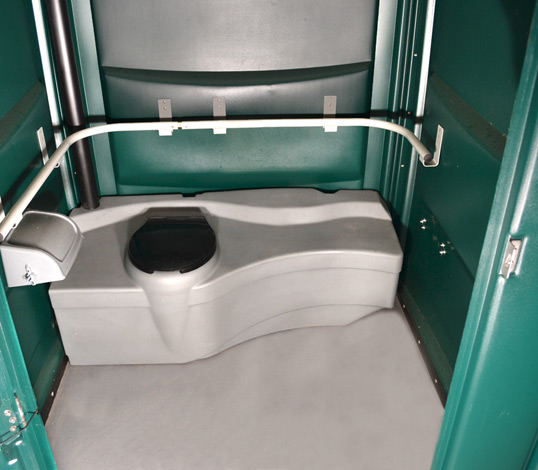

Optional Tank: | 257L |
Weight w/opt tank: | 120Kg |
Download / Media
- Picture Downloads: use available pictures
- Parts PDF: Liberty Parts (pdf)
- Product Brochures: Liberty Brochure (pdf)
- Assembly Instructions: Liberty Unit Assembly (pdf)
- Warranty: Liberty Warranty (pdf)
