Freedom
Overview

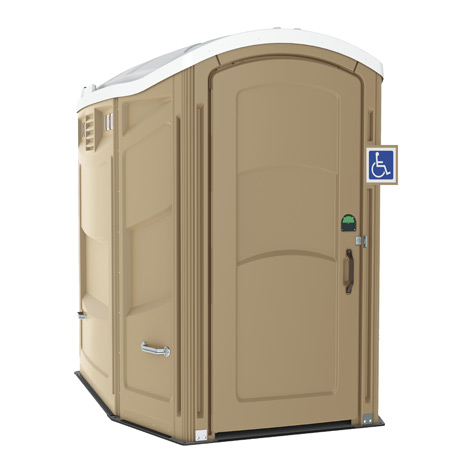

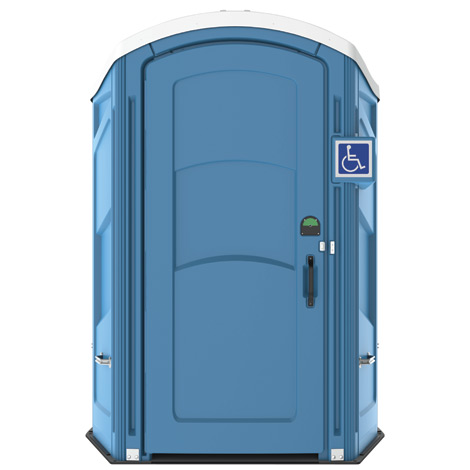

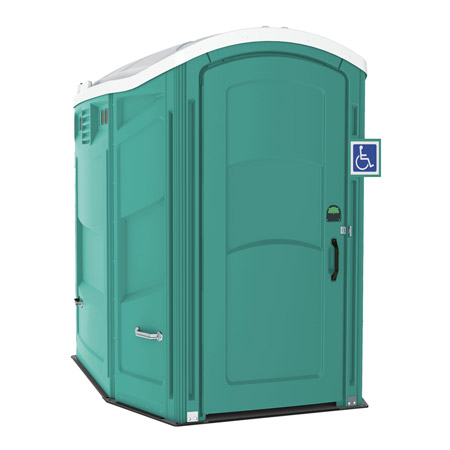

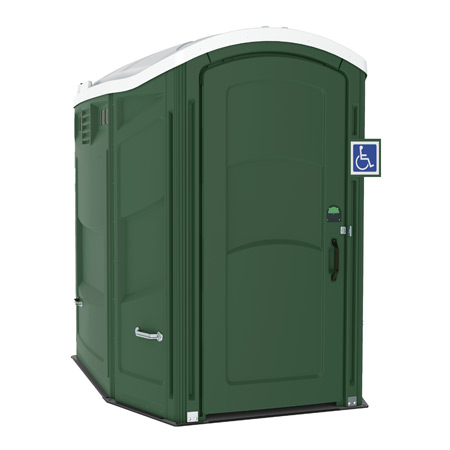

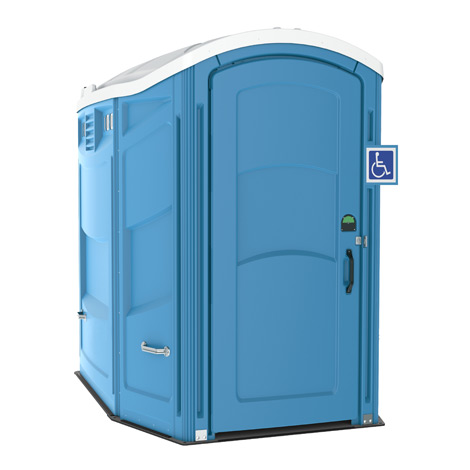

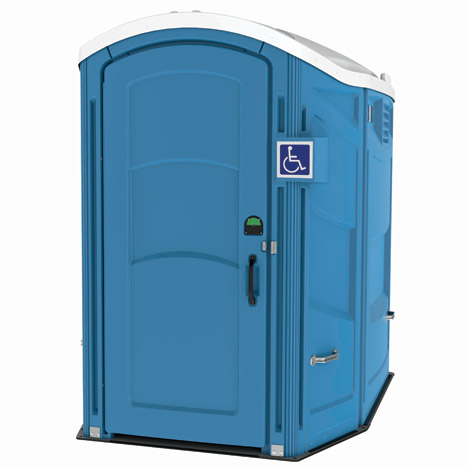

The new Freedom is smaller, lighter, sturdier and less expensive than many other wheelchair accessible models on the market. With this many benefits, operators will find the new Freedom easier to handle, maintain and afford.
To improve handling and quality, the Freedom is fifty pounds lighter and has a unique front design featuring “living hinge” corners and a built-in, interlocking door hinge to eliminate door sag. The living hinge on each front corner acts like a shock absorber when struck by a fork lift or dropped off a trailer. Additionally, the capped roof and stainless steel front floor brackets combine with the front to form a superior restroom.
- Fully compliant

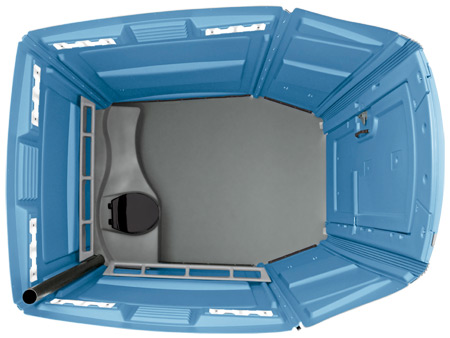

- Patented flat-floor system
- Multiple roof tie-down options
- 4 Year Limited Warranty
Flush & Handwash
-
Western Hand Flush
The Western re-circulating flushing system is a popular option for customers since it can be installed quickly to easily upgrade any of Satellite’s standard, wheelchair accessible and many other portable toilets into a flushing unit.
Learn More
Additional Options
Specifications
Height: | 2286mm |
Width: | 1702mm |
Depth: | 2197mm |
Seat Height: | 476mm |
Weight (standard tank): | 141Kg |
Tank volume: | 257L |
Weight w/optional tank: | 136Kg |
Optional Tank volume: | 132.5L |
Download / Media
- Picture Downloads: Freedom Downloads (zip)
- Parts PDF: 1994-2011 Freedom Version for parts (pdf)
- Product Brochure: Freedom Brochure (pdf)
- Assembly Instructions: Freedom Instructions (pdf)
- Warranty: Freedom Warranty (pdf)
