Overview

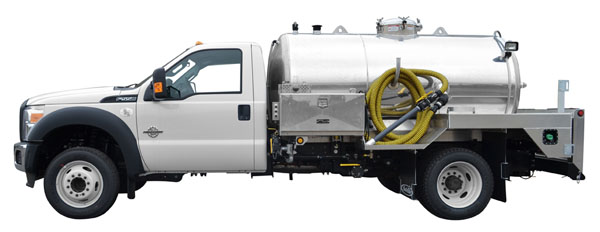

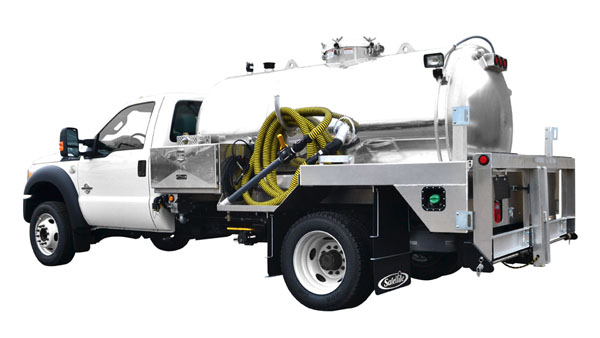

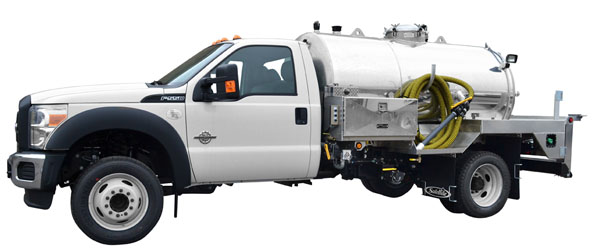

When a lighter truck is needed, select the all-aluminum MAL1175. It has a twin compartment tank that is split 775 waste/400 gallons fresh and weighs significantly less than a mild or stainless steel tank, which causes less wear and tear on the chassis and lowers mileage costs.

The catwalk and cabinets are made of bright 1/8 inch aluminum, creating a highly polished, professional appearance. There is a round sight glass for the waste tank and a sight tube for the fresh. A quick opening manway is located on the waste tank and a side ladder leads to the top manway for easier inspection, repair or cleaning. For driver safety, a DOT safety equipment package is provided and includes a flag and reflector, first aid kit and fire extinguisher.

Please note that trucks require ultra low sulfur diesel fuel and Urea.

Features

Cabinet Design & Materials

• Design: 1/8” Aluminum side panels with one aluminum locking cabinet on each side. Cabinet and side panels are bolt-together construction.
• Finish: Bright Aluminum

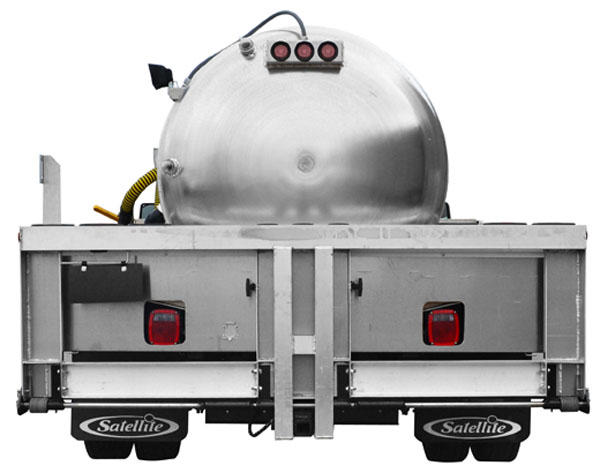

Bumper, Hitch Assembly & Unit Hauler

• Self-supporting
• Recess-mounted rail, back-up and marker lights
• Female half of six-pin connector flush mounted
• Trailer and safety chain hookup
• Grade 8 mounting bolts
• Locking pin-to-hold unit hauler in position
• Fold up design holds two units
• License plate holder

Standard Module Features

• 36” x 30” x 24” cabinets on both sides
• 1/8” aluminum catwalks and cabinets
• Round sight glasses for waste level; sight tube for fresh level.
• Rubber dock guard on rear of catwalks
• 19” quick opening manway in waste
• Ladder to gain access to top manway
• DOT safety equipment package (flag and reflector, first aid kit, fire extinguisher)

Vacuum system

Features:

• Service hose 30’ (others optional)
• Electronic fast idle system (chassis option)
• Pump oiling system
• Primary overflow valve (in-tank design)
• Secondary check valve (in-line design)
• Moisture trap
• Exhaust muffler/oil catch
• Vacuum gauge (cabinet mounted)

Pumping System:

• Standard pump: Masport HXL4V with pressure dump
• Standard pump drive: PTO with torque overload protection.

Toilet Wash Down System Features
Moro stainless steel (Medium pressure wash down system)

• 20 Gallon per minute pump 30 PSI with solenoid and pressure switch run by 1 HP Leason motor
• 100 amp circuit breaker and #4 electric cable
• 25’ garden hose and sprayer (optional hose reel)
• Hose hook

Cat High pressure wash down system

• 1000 PSI 4.7 GPM Piston style pump powered by 1 hp Leason motor
• 100 amp circuit breaker and #4 electric cable
• 50’ high pressure hose with special spray wand (optional hose reel)

Options

• Vacuum hose length options
• Pressure wash systems
• Dump hose length options
• Dual side service
• Three Compartment tanks (requires extra lead time)
• Chevrolet or Isuzu chassis options (requires extra lead time)

Specifications

Dimensions:

Length (module)	138”
Width (overall) excluding mirror bracket	99”
Overall height (mounted)	92”
Module height (not mounted)	61”
Module weight	2379 lbs.

Weight & Balance

Front	Axle Weights	Rear	Total
4,762 lbs.	Empty	5,062 lbs.	9,824 lbs.
5,834 lbs.	Full Fresh	7,326 lbs.	13,160 lbs.
4,842 lbs.	Full Waste	11,569 lbs.	16,412 lbs.
5,056 lbs.	Full Truck*	12,022 lbs.	17,079 lbs.

*Full Truck = Full waste, 20% fresh, driver. 18,000 lbs. = Ford F550 Factory published CVW rating

Tank Design & Material

• Rear Waste Compartment:
  Volume – 775 gallons, Shell – ¼” ASTM 5454, Heads – Two ¼ x 54” diameter, one ¼” cross baffles; two wing baffles. One 19” quick opening manway in center of waste.
• Front Fresh Compartment:
  Volume – 400 gallons, Shell – ¼”, with one ¼” x 54” head, two wing baffles.
• Mounts
  Tank rests on chassis frame on captive 2” x 3” plastic lumber strips. Front consists of spring loaded mounts with 5/8” Grade 8 bolts and lock nuts. Center mount H-style mounting bracket. Rear mounts consist of 3/8” and ¼” brackets. Brackets are bolted with 5/8” diameter Grade 8 plated bolts, to frame and to tank with 5/8” bolts.
• Dump locations:
  Waste — 3” full port dump located just behind rear wheel on driver’s side.
  Fresh — 2” dump located just behind cab on left side.
• Fitting Sizes:


  Fresh outlet	2” MPT	Fresh inlet	4” FPT
  Waste outlet	3” MPT	Waste inlet	3” MPT
  Vacuum line	2” hose
  Waste indicator	5” sight glass	Fresh indicator	1” sight tube

• Tank Finish:
  Bright finish aluminum

Performance on 775 Compartment:

		Pressure-relief valve setting
1400 RPM	Rating (CFM)	12” HG	18” HG
HXL4	160	31 seconds	68 seconds

The above times are for empty tank performance.
